Recovering the GRUB on software RAID

Rate this item
(0 votes)

Recovering the GRUB on software RAID

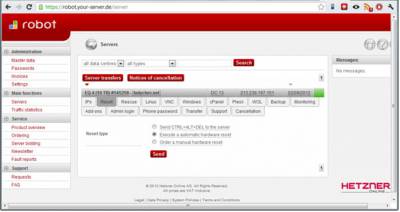

The introduction: The software RAID 1 array consisting of 2 hard drives is used by default (if the system is set while ordering) on Hetzner root servers. What on earth made me a day or two ago reboot the server after 242 days uptime? After rebooting it never appeared on-line. Let's start from here. 1. At first, I decided to reboot once again, using https://robot.your-server.de/server this time.


It didn't help.

1.Then I went to Support Service and wrote a humble letter. I learnt at the same time that there was no support for the root server software. Instead, I received a letter similar to this text:

we have connected a remote console to your server to solve the issue.Access details:http://lara03.rz13.hetzner.de

user: ******

pass: ******

Please note that access can only be guaranteed for a maximum of two hours. If the

Lara is not used after the ensured time period, we can use it elsewhere without

providing further notice.

2.I went to the above-noted address, entered the username and password. And I saw


3."Yeah," I said, and began to do a Google search for «error: symbol not found: ‘grub_divmod64_full». I learnt that I was not alone with such a problem, and that the most likely cause had been the system update.

4.I loaded the server in alarm mode (make sure to select 64-bit, if you had a respective system installed)


I do not want to keep you in suspense for a long time - the solution was as follows:

1.I created a chroot environment:

# mount /dev/md2 /mnt
# mount /dev/md1 /mnt/boot
# mount -t dev -o bind /dev /mnt/dev
# mount -t proc -o bind /proc /mnt/proc
# mount -t sys -o bind /sys /mnt/sys
# chroot /mnt

2.Then I reinstalled the GRUB:

# grub-mkconfig -o /boot/grub/grub.cfg
# grub-install /dev/sda
# grub-install /dev/sdb
# update-grub;

Here are a couple of comments. It seems that the boot loader should be installed on md1 (# grub-install /dev/md1), but this variant did not work, returning a number of errors. Therefore I had to install it on either of the two mirrored drives severally. I do not know if this was correct. But it helped in my case.

In conclusion, here are a couple of links to the posts of people with similar problems:

1.http://www.ivanov2.ru/error-symbol-not-found-grub_divmod64_full

2.http://blog.wolfspelz.de/2012/05/hetzner-root-server-does-not-boot-and
